Locking Systems
Configurable Locking for Dependable Security and Ease of Operation
Our reliable locking hardware systems come with multiple configuration options to suit your needs. Easy to engage – our systems provide independently tested and proven protection against forced entry for peace of mind.
Our locking systems mitigate security risks while providing flexibility to accommodate your project's needs. From the convenience of foot-activated bolts to multi-point locking systems, deadbolts, locking rods, and more – we value your safety.
Concealed and Seamlessly Integrated

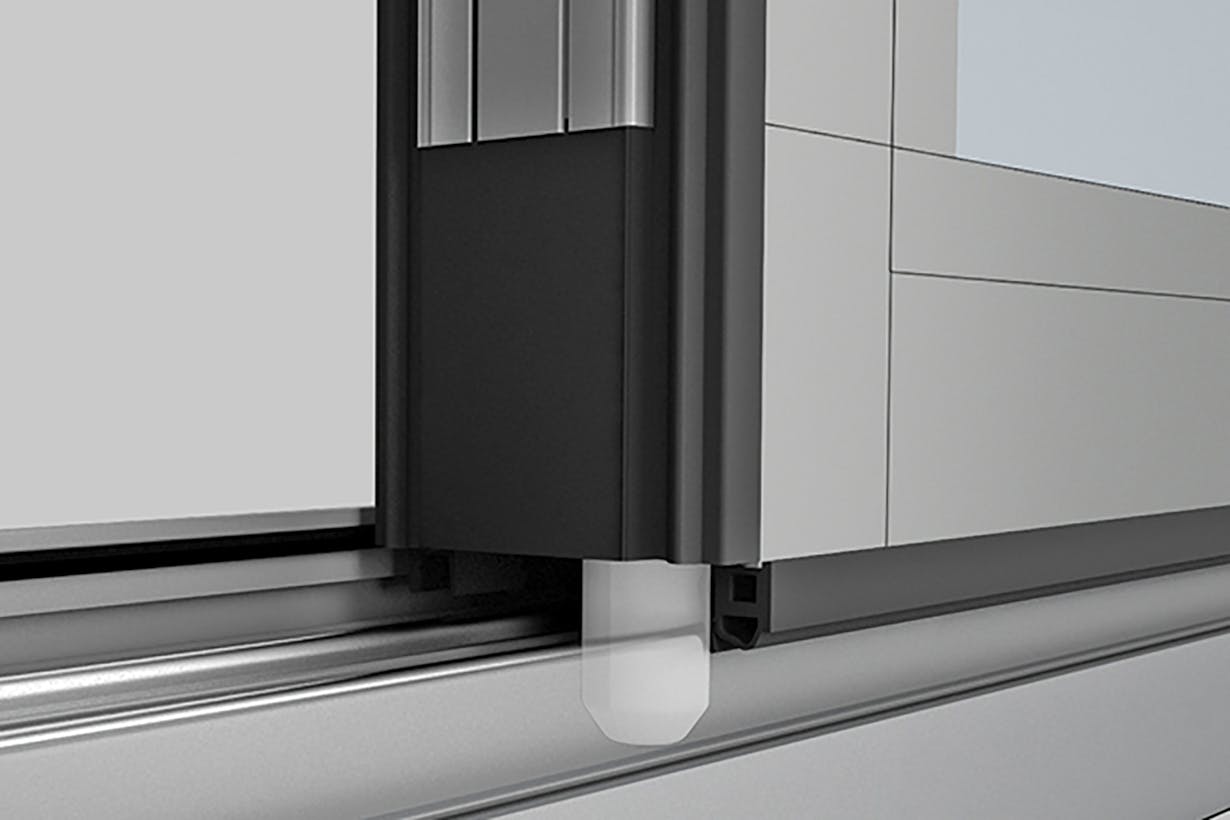

Our concealed and rattle-free locking rods engage at the turn of a handle providing advanced security seamlessly built into your glass wall system.
Tested to Prevent Any Intrusion
Enjoy peace of mind knowing our locking hardware has been tested rigorously against the most stringent standards for forced entry testing.
Commercial-Grade Customizations
We continue to innovate with cutting-edge security features tailor-made for your project's needs. Contact us to customize a solution that's right for you.

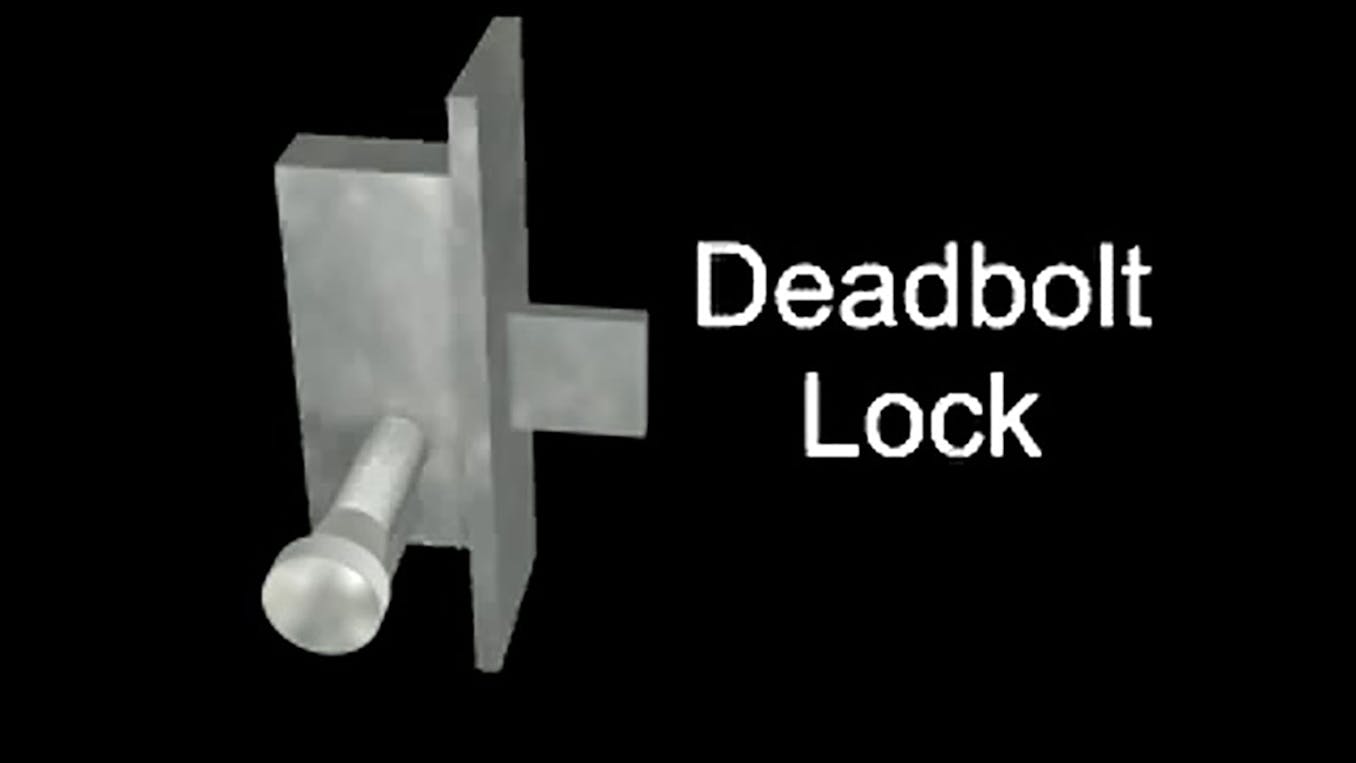

Our industry-tested locking mechanisms offer protection from break-ins – with a handle-engaged deadbolt and locking rods that secure the top and bottom tracks.

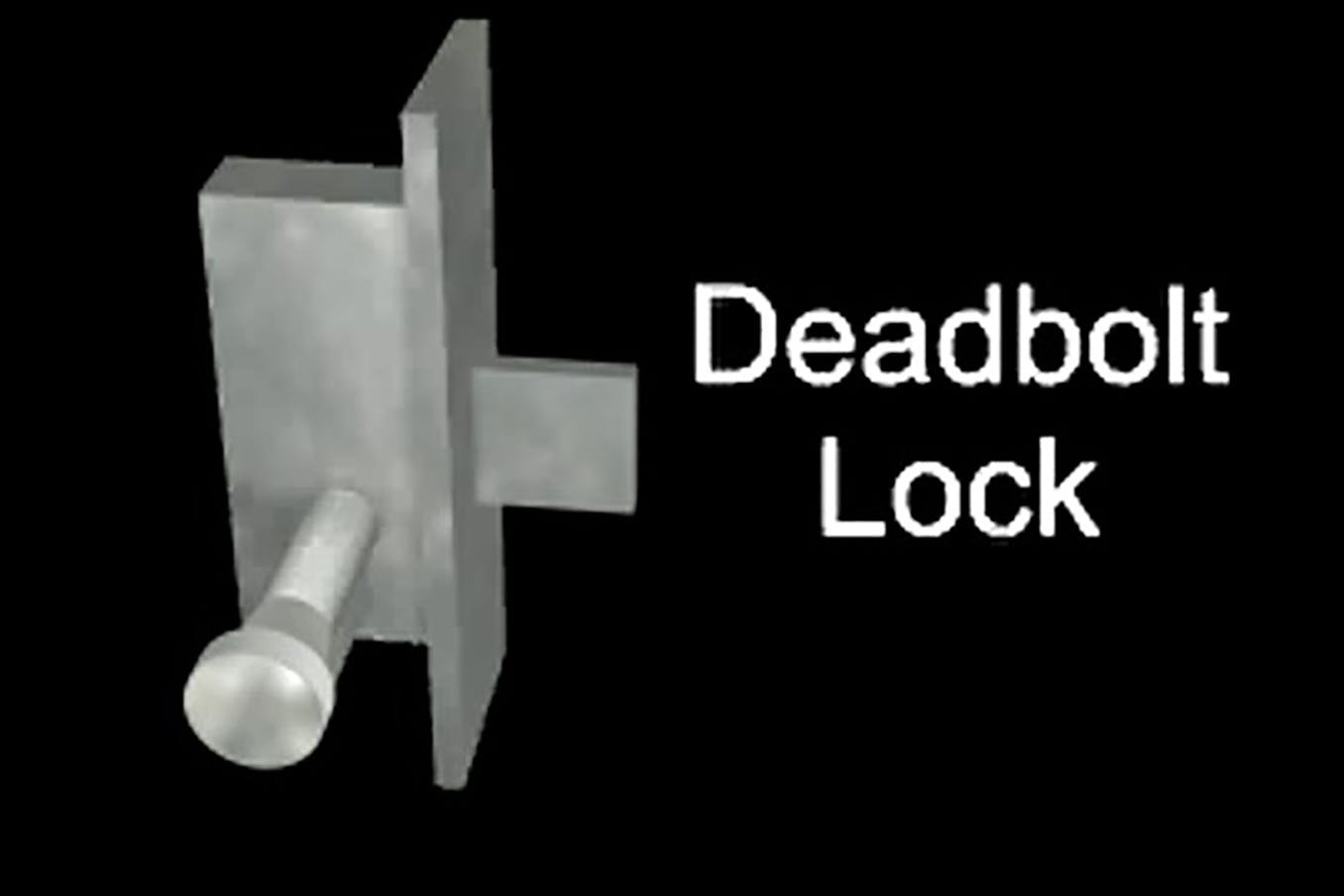

Our locking rods and deadbolts combine to provide an extra level of defense against potential intruders – quickly turning them away with security that meets or exceeds all forced entry testing.

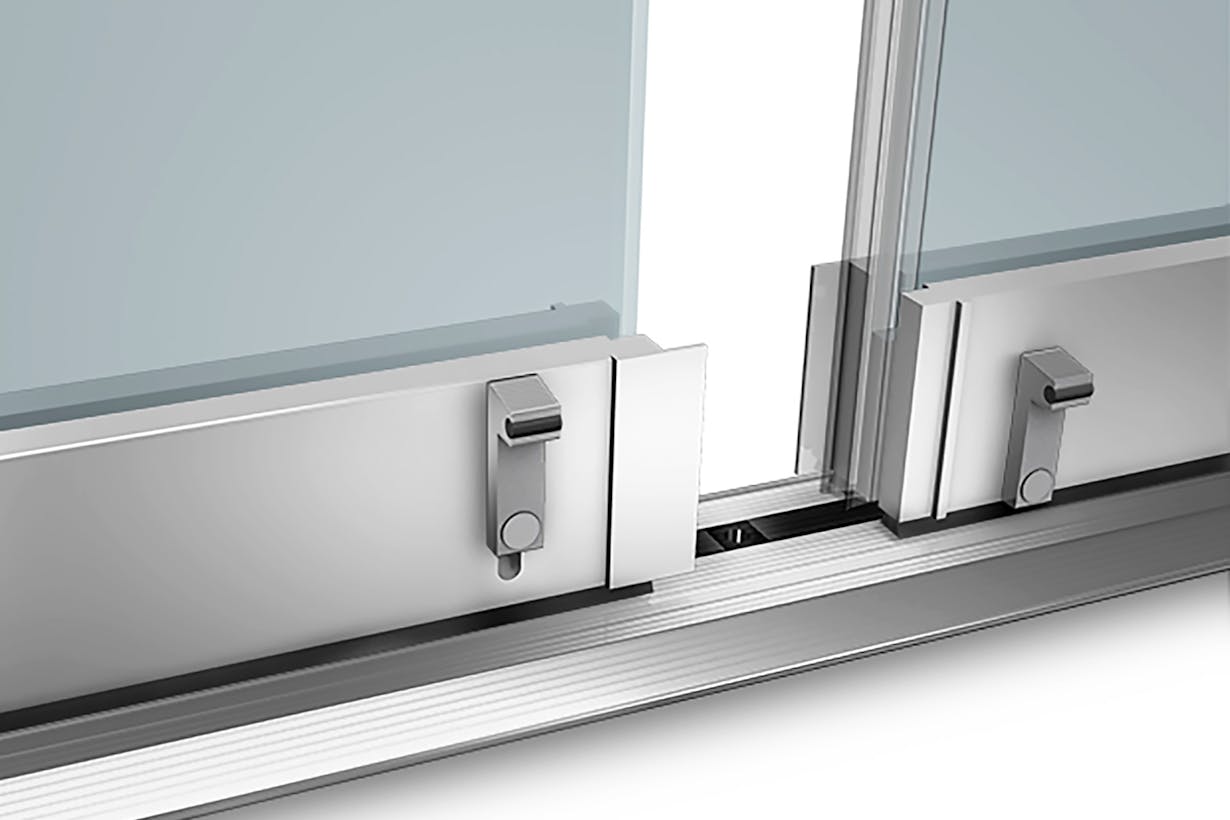

Select sliding panels are available with foot-activated floor bolts – built for convenience – eliminating the need to kneel and lock your door.

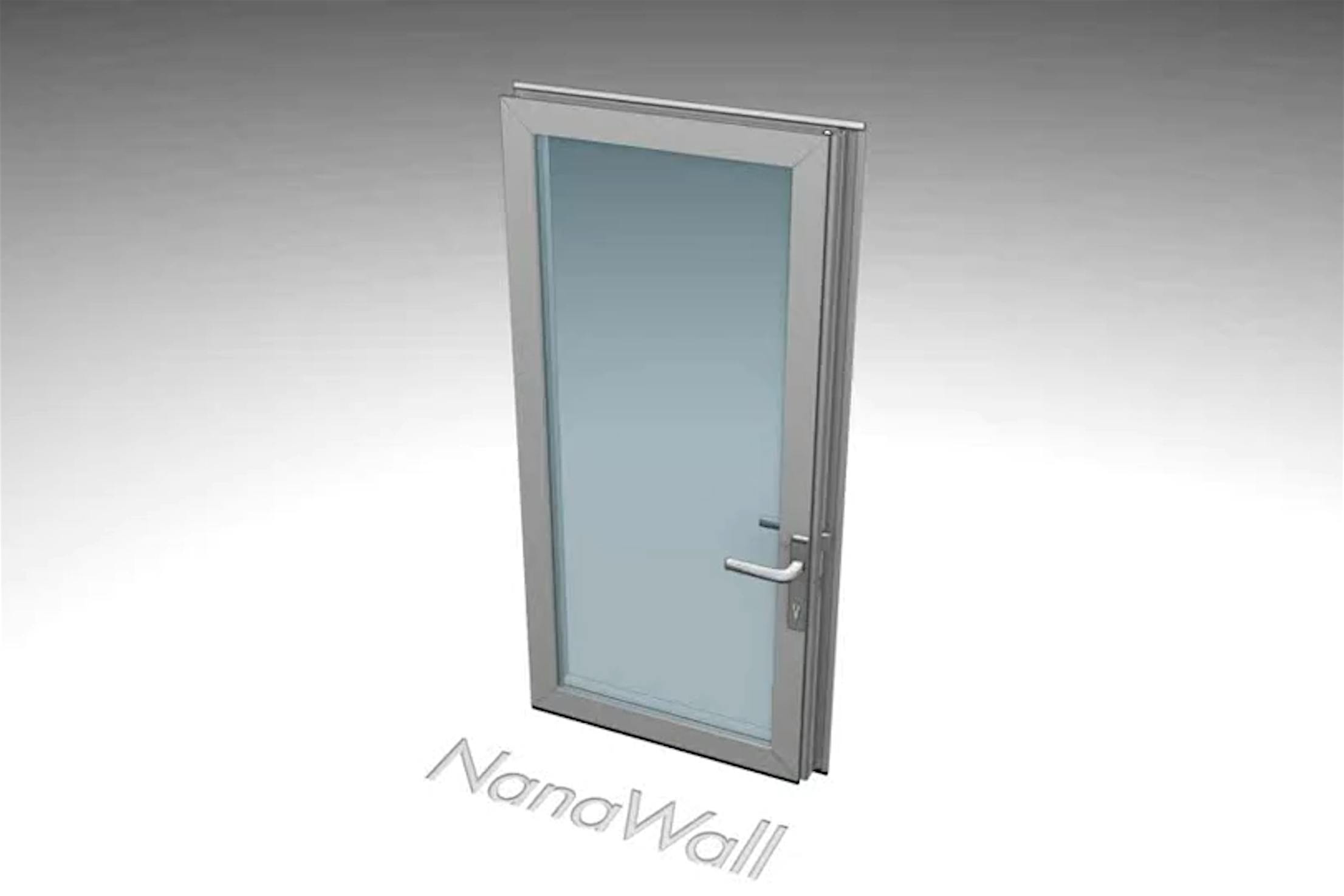

We offer multiple locking options on primary swing panels. From single-point single motion, push/pull handles, or 3rd-party supplied panic hardware – we have a solution that will work for your project.

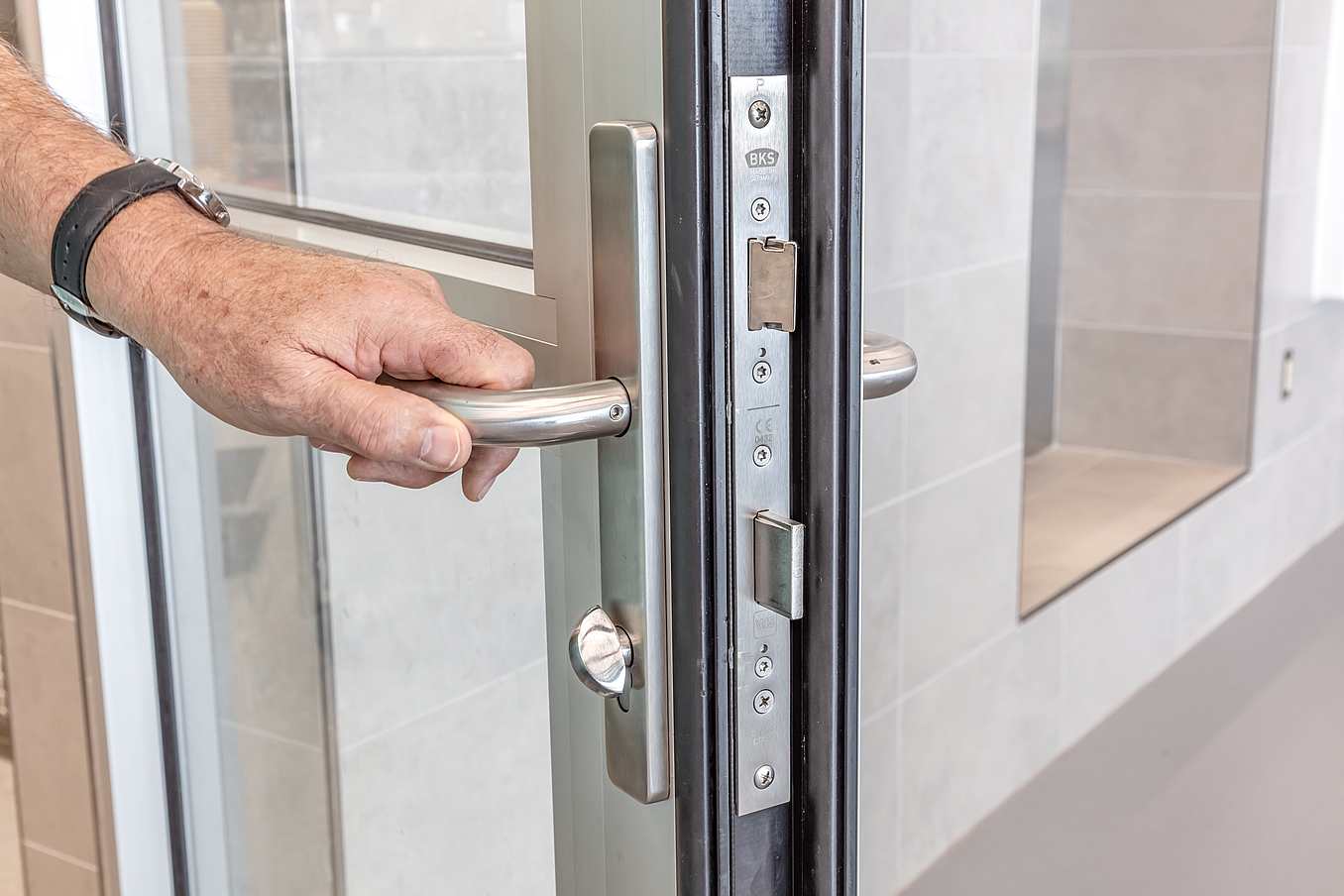

Multipoint Locking with Latch, Deadbolt and Top/Bottom Locking Rods
Standard and Tested Locking Option on Primary Swing Panels:
Multipoint locking operated by lever handles and with European profile cylinder. Locking is independently tested for air, water, structural load performance, and forced entry. Instead of a profile cylinder, an adapter case is available for use with an SFIC core.
Includes top and bottom Polyamide capped locking rods, deadbolt, a compatible lock set with lockable latch and lever handles on the inside and outside. Depression of handles withdraws latch. Lifting of handles engages rods and turn of key or thumb turn engages deadbolt and operates lock.
Operable from inside and outside.
Standard and Tested Locking Option on Primary Swing Panels:
Multipoint locking operated by lever handles and with European profile cylinder. Locking is independently tested for air, water, structural load performance, and forced entry. Instead of a profile cylinder, an adapter case is available for use with an SFIC core.
Includes top and bottom Polyamide capped locking rods, deadbolt, a compatible lock set with lockable latch and lever handles on the inside and outside. Depression of handles withdraws latch. Lifting of handles engages rods and turn of key or thumb turn engages deadbolt and operates lock.
Operable from inside and outside.
Multipoint Locking with Latch, Deadbolt and Top/Bottom Locking Rods
Standard and Tested Locking Option on Primary Swing Panels:
Multipoint locking operated by lever handles and with European profile cylinder. Locking is independently tested for acoustical performance and forced entry. Instead of a profile cylinder, an adapter casing is available for use with an SFIC core.
Includes top and bottom Polyamide capped locking rods, deadbolt, a compatible lock set with lockable latch and lever handles on the inside and outside. Depression of handles withdraws latch. Lifting of handles engages rods and turn of key or thumb turn engages deadbolt and operates lock.
Operable from inside and outside.
Standard and Tested Locking Option on Primary Swing Panels:
Multipoint locking operated by lever handles and with European profile cylinder. Locking is independently tested for acoustical performance and forced entry. Instead of a profile cylinder, an adapter casing is available for use with an SFIC core.
Includes top and bottom Polyamide capped locking rods, deadbolt, a compatible lock set with lockable latch and lever handles on the inside and outside. Depression of handles withdraws latch. Lifting of handles engages rods and turn of key or thumb turn engages deadbolt and operates lock.
Operable from inside and outside.

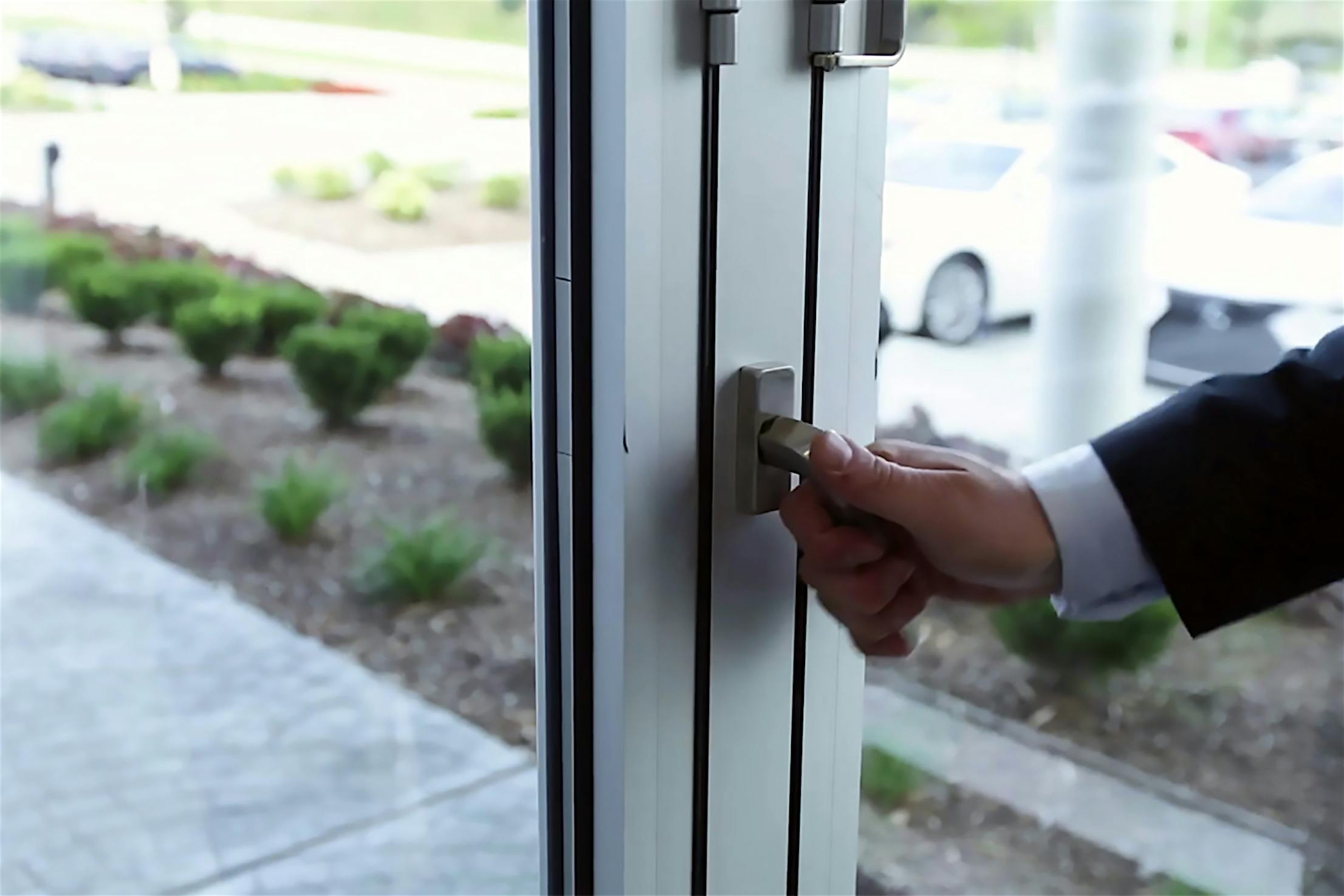

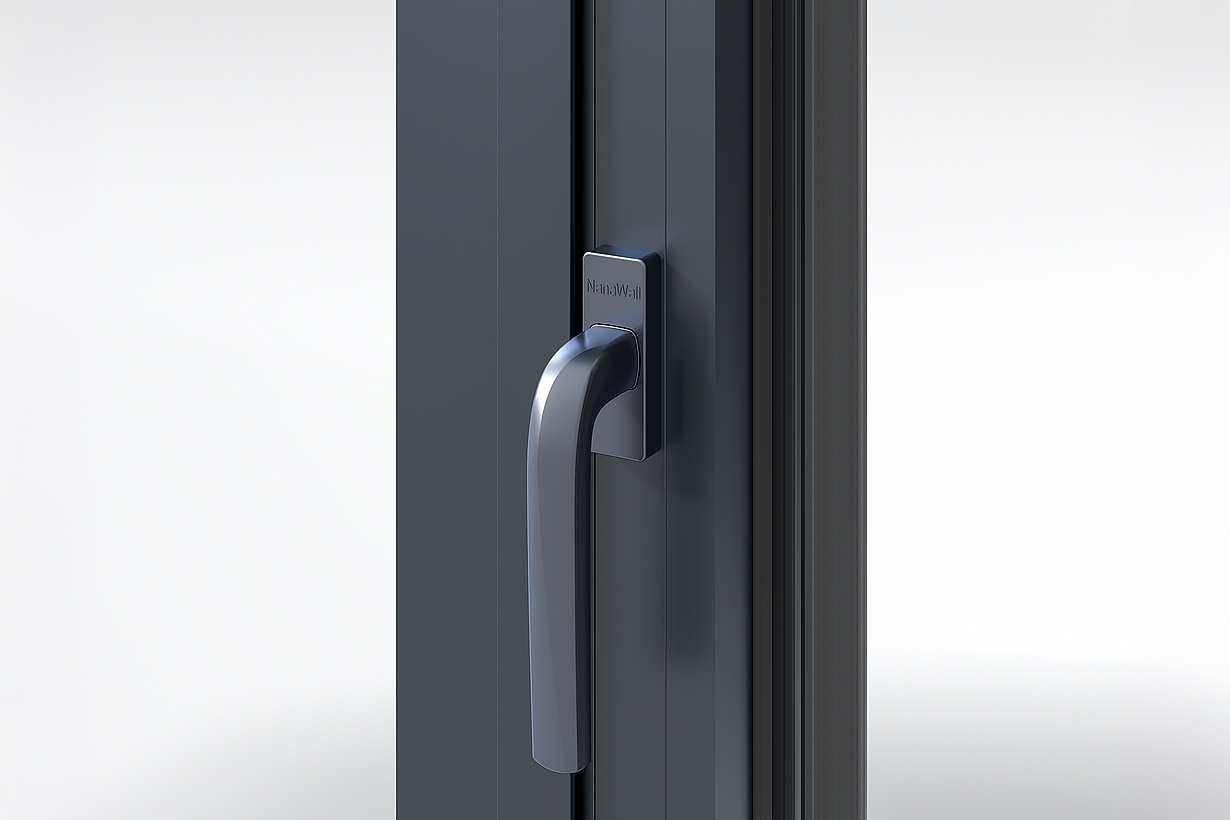

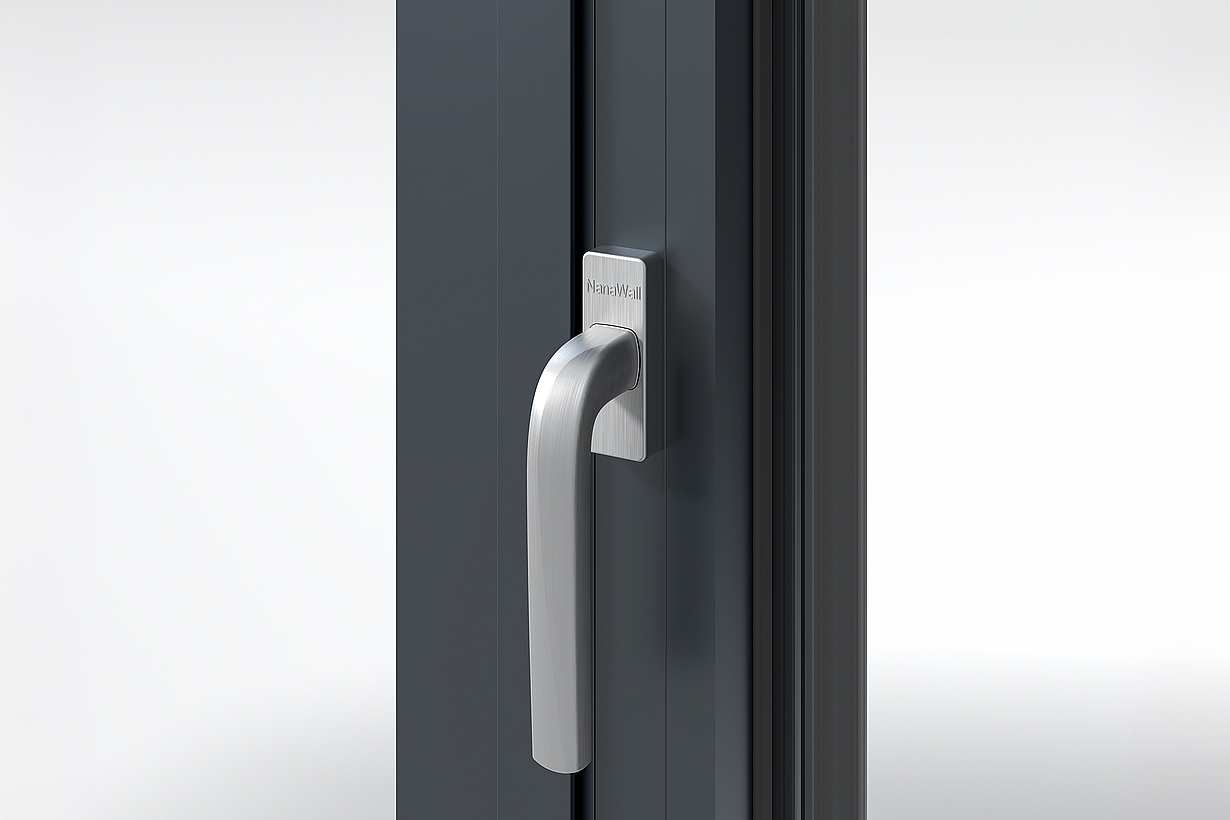

Two Point Locking
Standard to the system is concealed locking between folding panels that operates with a 180° turn of a flat handle. The top and bottom locking bolts have approximately a 1″ (24 mm) throw for maximum security engagement into the head and floor track.
Operable from inside only.
Standard to the system is concealed locking between folding panels that operates with a 180° turn of a flat handle. The top and bottom locking bolts have approximately a 1″ (24 mm) throw for maximum security engagement into the head and floor track.
Operable from inside only.

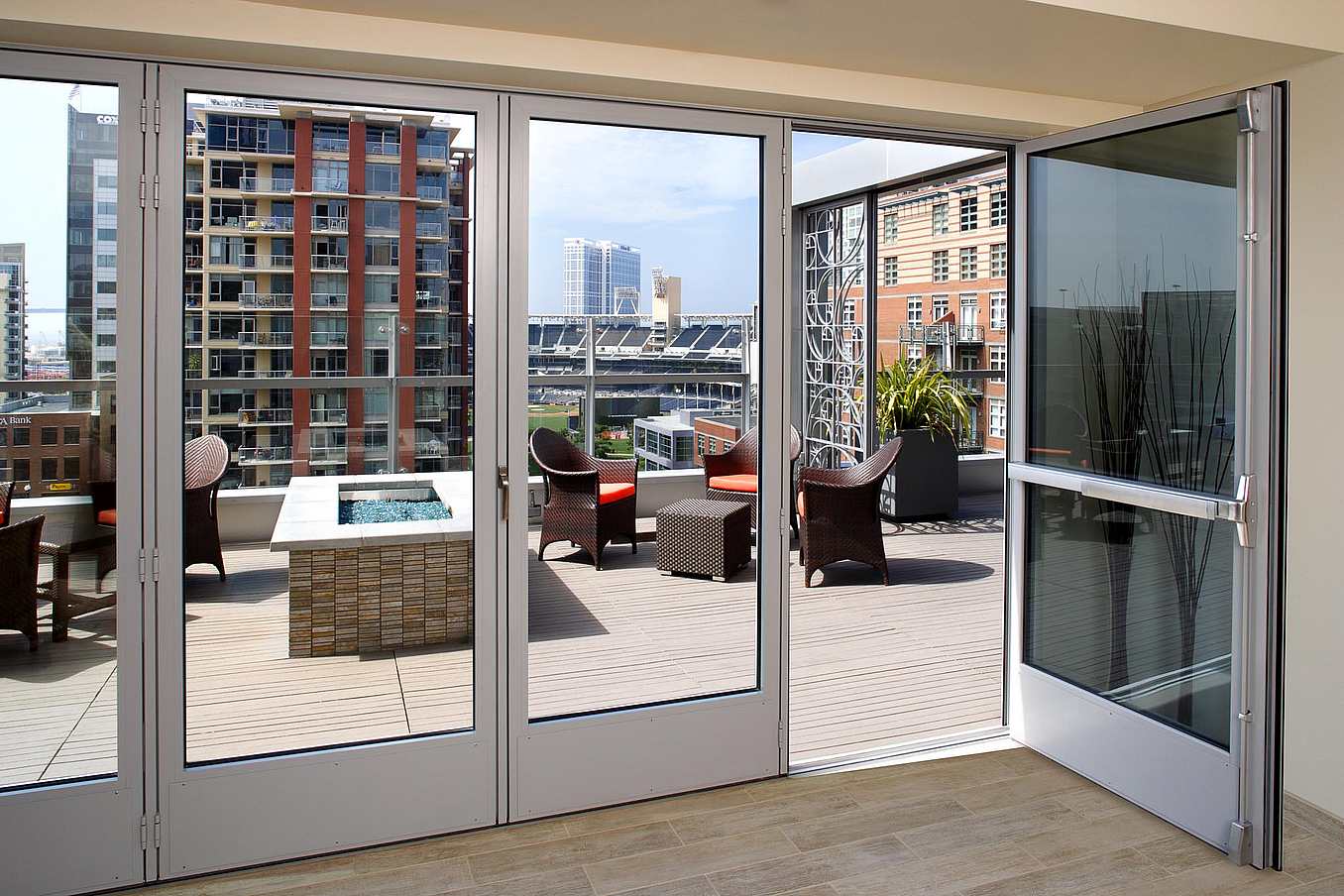

Optional Commercial Locking
For Primary Swing Panels (no air, water or structural load performance values)
- Deadbolt lock(s) and push/pull handles and key/key European profile cylinder on both sides. Only recommended for end swing panel with door closer by others. Instead of a profile cylinder, an adapter casing is available for use with an SFIC core.
- Latch and deadbolt single motion operated by GU Rondo lever handles and with European profile cylinder. Instead of a profile cylinder, an adapter casing is available for use with an SFIC core.
For Primary Swing Panels Prepped for Supply by Others (no air, water or structural load performance values):
- Latch and deadbolt single motion locking operated by lever handles with locking with a US mortise cylinder that can accommodate standard 5 - 7 pin, SFIC, FSIC, or LFIC cores that currently includes Yale 8808-2 series and Schlage L/LV9000 series only.
- Panic hardware (prep provided for the push side):
- Von Duprin 33/35A Series Narrow Stile Rim Exit Device
- Von Duprin 98/99 Series Rim Exit Device
- DORMA 9700 Series Narrow Stile Rim Exit Device
For Primary Swing Panels (no air, water or structural load performance values)
- Deadbolt lock(s) and push/pull handles and key/key European profile cylinder on both sides. Only recommended for end swing panel with door closer by others. Instead of a profile cylinder, an adapter casing is available for use with an SFIC core.
- Latch and deadbolt single motion operated by GU Rondo lever handles and with European profile cylinder. Instead of a profile cylinder, an adapter casing is available for use with an SFIC core.
For Primary Swing Panels Prepped for Supply by Others (no air, water or structural load performance values):
- Latch and deadbolt single motion locking operated by lever handles with locking with a US mortise cylinder that can accommodate standard 5 - 7 pin, SFIC, FSIC, or LFIC cores that currently includes Yale 8808-2 series and Schlage L/LV9000 series only.
- Panic hardware (prep provided for the push side):
- Von Duprin 33/35A Series Narrow Stile Rim Exit Device
- Von Duprin 98/99 Series Rim Exit Device
- DORMA 9700 Series Narrow Stile Rim Exit Device
Edge Lock
Standard and Tested Locking for Secondary Swing Panels
Concealed edge lock with top and bottom locking bolts have approximately a 1″ (24 mm) throw for maximum security engagement into the head and floor track. Locking is independently tested for air, water, structural load performance, and forced entry.
*For more hardware options, contact NanaWall.
Standard and Tested Locking for Secondary Swing Panels
Concealed edge lock with top and bottom locking bolts have approximately a 1″ (24 mm) throw for maximum security engagement into the head and floor track. Locking is independently tested for air, water, structural load performance, and forced entry.
*For more hardware options, contact NanaWall.
Two Point Locking
Concealed locking between folding panels that operates with a 180° turn of a flat handle. Standard to the system is the PowerLock—a pair of locking bolts to the top and to the bottom with approximately a 1″ (24 mm) throw for maximum security engagement into the head and floor track.
Operable from inside only.
Concealed locking between folding panels that operates with a 180° turn of a flat handle. Standard to the system is the PowerLock—a pair of locking bolts to the top and to the bottom with approximately a 1″ (24 mm) throw for maximum security engagement into the head and floor track.
Operable from inside only.
