WD65
Wood Framed Folding Glass Door Designed to Solve Specific Architectural Challenges
- Can be configured with segmented curves and 90° - 135° open corners
- Panels can fold 180° and stack parallel to the opening against the wall
- Capable of inward and outward opening panels and swing doors within the same opening
Segmented Curve Capabilities
A key feature of the WD65 is the ability to create a segmented curve. A accordion glass door that’s segmented utilizes flat glass panels to achieve a curved aesthetic. Segmented curves of 6° - 12° can be created with or without an integrated swing door.
Stacks Flat Against the Wall
FoldFlat is a unique configuration of the WD65 that allows the panels to fold 180° and stack flat up against the outside wall, removing the panels from obstructing walkways while also maximizing the circle of sight.
Inward and Outward Stacking, Same Opening
The WD65 includes the ability to have each panel stack open opposite each other within the same plane of the opening (inward and outward) on the same single track.
Innovative design enables the folding panels to stack 180° flat up against the wall for maximum outside space usage and greater circle of sight from the inside.
See FoldFlat Product Detail
- Unhinged Paired Panels
- Segmented Curve Capabilities
- FoldFlat - Panels Stack Flat Against Wall
- Inward and Outward Stacking, Same Opening
- Dual Height Window Door Combo
- Cornerless
NanaWall WD65 offer flexibility, natural daylight and visibility in interior school application. Classrooms turn into adaptable multi-functional spaces and when closed, the WD65 provides acoustical buffering for privacy.
Unlike traditional glass wall partitions, the WD65 provides transparency but also the flexibility and sound control needed for workplace interiors.
Solid Wood, Triple Laminated
The WD65 is the folding or paired-panel wood framed system for special applications designed to provide an opening glass wall or storefront for widths up to 43′ (13 m) with 12 panels. Wood components are 100% solid wood of choice, cross-grained and triple laminated for strength.

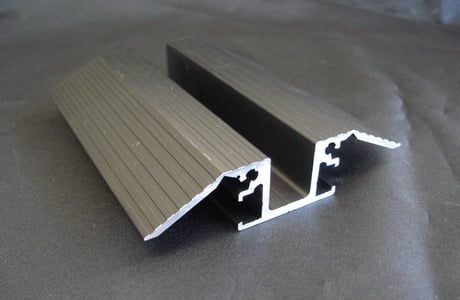

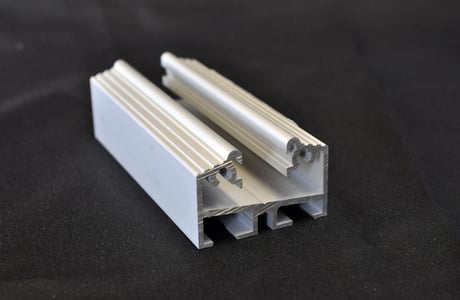

Sill Options
The WD65 offers four sill options to meet application requirements including the Standard Sill, Low Profile Saddle Sill, Flush Sill, and the Surface Mounted Sill.
Quiet And Smooth Top To Bottom
The WD65 system is top hung, where the main weight is carried by the head track. The bottom track is a guide. Our sound-free roller material remains smooth and round even when stationary for long periods of time, resists extreme temperatures.
Extreme Weather Resistant
Energy-efficient by design, our glass walls keep the elements at bay, ensuring that even as seasons or temperatures change, your interior comfort will always remain the same.
Certified Testing Standards
NanaWall products endure the latest AAMA testing standards for air, water, structural, and forced entry.
Highly Energy-Efficient
Designed to keep the elements at bay, holding warmth inside while acting as a transparent barrier to the weather outside.
Sustainable Design
NanaWall products contribute to multiple LEED rating systems and potentially several credit categories.
Performance When Closed Matters Most
Large openings are easy to design and there are many options to choose from. When deciding on a product that best for your project, performance when closed needs to be considered.
Test Results
The NanaWall® WD65 has been independently tested for air and water penetration resistance, structural deflection, and forced entry. Also with NFRC rated, certified and labeled thermal performance.
Air, Water, Structural, Thermal, and Forced Entry ResultsWhat Our Customers Have to Say
ParkStone Wood Kitchen
The patrons of the ParkStone Wood Kitchen are not only treated to oak wood-grilled cuisine, but are surrounded by an aesthetically pleasing, performance-driven wall solution when Utah fall weather sets in.
Run of the River
To further enhance the connection to nature at this Washington location, the design team specified the WD65 Wood Framed Folding System, with a NanaScreen add-on to keep out mosquitoes.
"We specified NanaWall because of the high quality of the product and the ease of operation, the hardware works beautifully."
— Dennis Erwood, Architect
To ensure the longevity of our wood systems, we provide triple laminated cross-grains to accommodate the wood’s natural expansion and contraction.
See Wood Options

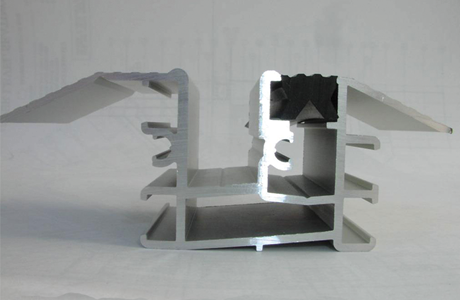

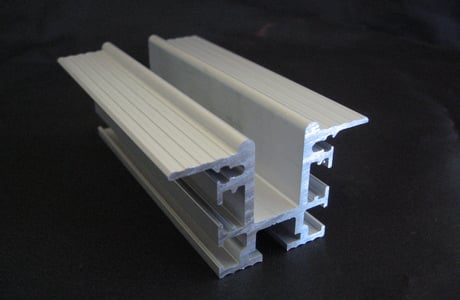

WD65 comes with 4 sill options: Standard Sill, Low Profile Saddle, Flush Sill, and Surface Mounted Interior Sill.
See Sill Options
Units can be supplied glazed with 15/16" clear double insulating safety, 15/16" double insulating Low-E safety, 1 1/2" triple insulating glass, 1/4" single tempered, other high performing safety glass such as Heat Mirror, special tint, etc. or other glass on request.
See Glazing Options
Stylish Handles in Multiple Finishes
Our handles are both functional and stylish and can be customized to accentuate your space and reflect your style.
See Handle Options
Locking for Maximum Security
Standard to the system is concealed locking between folding panels that operates with a 180° turn of a flat handle.
See Locking Options
Retractable Screens by Others
A retractable screen add-on is perfect for blocking bugs while providing privacy and fresh air. Screens are not available through NanaWall Systems.
Retractable Screens by Others
Over 90 standard configurations for straight forward folding systems.
Explore limitless possibilities with our systems. Design and customize systems using our 3D CAD/Revit/Spec Configurators or contact our dedicated design team for more possibilities.
More Configurations
Taking Accordion Glass Doors Beyond Traditional 90-degree Stacking.
Explore limitless possibilities with our systems. Design and customize systems using our 3D CAD/Revit/Spec Configurators or contact our dedicated design team for more possibilities.
More Configurations
Curvaceous configurations can be created using our single track, bi-folding, frameless, and framed products. We highly encourage their use in your residential or commercial designs.
Explore limitless possibilities with our systems. Design and customize systems using our 3D CAD/Revit/Spec Configurators or contact our dedicated design team for more possibilities.
More Configurations
All standard configurations are available in cornerless options.
Explore limitless possibilities with our systems. Design and customize systems using our 3D CAD/Revit/Spec Configurators or contact our dedicated design team for more possibilities.
More Configurations
- Inward/Outward Combination
- Unhinged Paired Panels
Explore limitless possibilities with our systems. Design and customize systems using our 3D CAD/Revit/Spec Configurators or contact our dedicated design team for more possibilities.
More Configurations
Combine a NanaWall Folding Windows with a NanaWall Folding Glass Wall seamlessly.
Explore limitless possibilities with our systems. Design and customize systems using our 3D CAD/Revit/Spec Configurators or contact our dedicated design team for more possibilities.
More ConfigurationsWe consider ourselves your partners from day one. Connect immediately with a NanaWall expert to answer your questions and explore how we can support your project.
